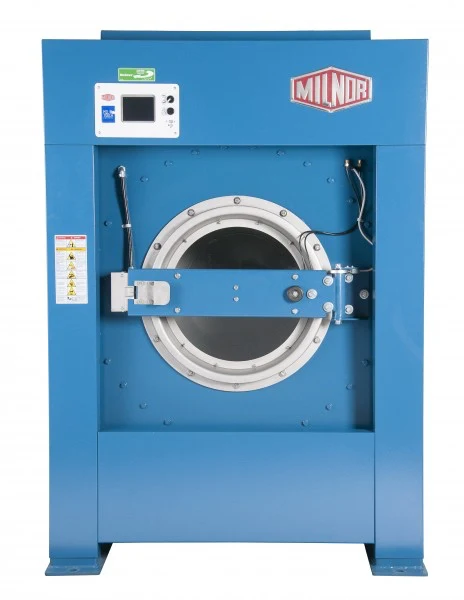

Milnor MWF Series
A 63 kg suspended washer-extractor with a forward tilt option for faster, easier unloading.
63 kg
Dry load capacity (140 lb)
300 G
Maximum extraction force
590 L
Drum volume
13.5°
Forward tilt option
Why the MWF63
E-P Plus and MilTouch controls guide staff through each formula and show the current step and time remaining. Tall drum ribs, a generous perforated area and precise drum speeds give strong mechanical action, so linen comes out clean the first time.
Linen is a laundry's second biggest cost. Chemicals enter at the rear of the machine and are diluted into the sump before they reach the load, and the roomy drum lets linen open up and rinse fully, so there are fewer rewashes and less wear.
A frequency inverter drive brings the motor up to full extraction smoothly, cutting peak current draw compared with multi-speed motors. Larger drum perforations improve washing, rinsing and water removal, which shortens drying time.
RinSave is standard on every MWF washer. It spins the drum to a set G-force after a wash step to throw out used water, chemical and soil, saving up to two rinses per load. Separate hot, cold and chemical-dilution inlets fill accurately without overshoot.
A dynamically tuned four-point suspension with SmoothCoil fabric and rubber coils isolates vibration, so extraction is smooth and components last longer. It all adds up to savings for years after the purchase.
With the optional weigh cell and electronic flow meter on MilTouch models, the machine weighs each load and delivers matching water and chemical, so part loads never use full-load amounts.
Up to two fewer rinses per load means less water, shorter cycles and more loads through the laundry every hour.
Tapered roller bearings spread the load over a large contact area. Front and rear bearings sit in one housing, so they can't drift out of line, and the pressed-on drum doesn't need replacing when bearings are changed.
Long machine life
1,000+ hrs
Every Milnor design is run for at least 1,000 consecutive hours at high extraction while out of balance.
4-point
SmoothCoil suspension keeps vibration isolated for smooth extraction and less wear.
Worldwide
Sold through a global dealer network, supplied, installed and serviced in Australia by Aqualogic.
Controls
A proven keypad controller for laundries that run a settled set of programs and want simple, dependable operation.
A colour touchscreen controller for laundries that want finer control over every step and easier formula changes.
Options
The machine tips forward 13.5° to empty the drum, so linen falls out instead of being pulled out by hand.
Available with MilTouch controls. The machine weighs each load and meters water to match, so light loads don't use full-load water and chemical.
Included on every MWF washer with E-P Plus or MilTouch. Saves up to two rinses per load.
Specifications
| Specification | Standard | Forward tilt |
|---|---|---|
| Model code, E-P Plus | MWF63J7 | MWF63C7 |
| Model code, MilTouch | MWF63Z7 | MWF63Y7 |
| Capacity | 63 kg (140 lb) | 63 kg (140 lb) |
| Drum diameter | 1,067 mm (42 in) | 1,067 mm (42 in) |
| Drum depth | 660 mm (26 in) | 660 mm (26 in) |
| Drum volume | 590 L (20.8 cu ft) | 590 L (20.8 cu ft) |
| Drive motor | 11.2 kW (15 hp) | 11.2 kW (15 hp) |
| Wash speed | 36-40 rpm | 36-40 rpm |
| Distribution speed | 60 rpm | 60 rpm |
| Extract speeds | 400-550 rpm | 400-550 rpm |
| Maximum extract speed | 710 rpm | 710 rpm |
| Maximum G-force | 300 G | 300 G |
| Drain size | 76 mm (3 in) | 114 mm (4.5 in) |
| Water inlet size | 31 mm (1.2 in) | 31 mm (1.2 in) |
| Width | 1,463 mm (57.6 in) | 1,717 mm (67.6 in) |
| Depth | 1,814 mm (71.4 in) | 1,831 mm (72.1 in) |
| Height | 2,083 mm (82 in) | 2,234 mm (88 in) |
| Forward tilt | No | 13.5° |
| Approximate weight | 2,460 kg (5,423 lb) | 2,635 kg (5,809 lb) |
Specifications and appearance subject to change without notice.
Documents
Milnor publishes brochures, specification sheets and installation drawings on its website. Need a manual for a machine you already own? Try our manuals library.
Aqualogic support
Delivery, positioning, connection and commissioning by our own technicians.
Preventative maintenance plans and fast repairs, Australia-wide.
Genuine Milnor parts and documentation.
Layouts, services and workflow planned around your linen.
Spread the cost with finance plans to suit your business.
45 kg
The entry point to the MWF Series: 45 kg of suspended, high-extract washing for busy on-premise and commercial laundries.
77 kg
A deeper 77 kg drum on the same footprint width as the MWF63, for more linen per cycle without more floor width.
100 kg
A 100 kg production washer-extractor for laundries where every cycle has to move a serious volume of linen.
125 kg
The largest MWF: 125 kg per load for central laundries that measure output in tonnes per shift.
